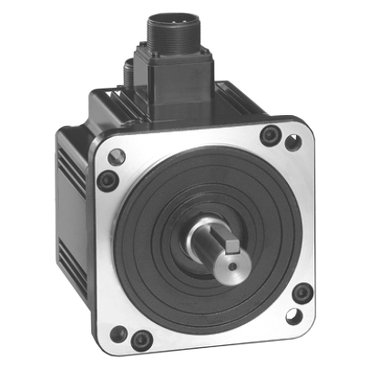

The Schneider Electric BCH1302N12 servo motor delivers reliable, high-precision performance for industrial automation, CNC machines, robotics, packaging, and material-handling systems. Its robust 1 kW power rating, compact 130 mm flange, and keyed 22 mm shaft ensure easy mounting and integration. With 3000 rpm maximum speed, 20-bit encoder feedback, and stable stall current, this motor provides accurate speed and position control in demanding applications. Built for durability and long service life, the BCH1302N12 is a dependable choice for modern automation projects.
Key Features
- 1.0 kW rated power — ideal for small to mid-range servo tasks
- 130 mm flange with 22 mm keyed shaft — standard mounting size for industrial servo setups
- 20-bit incremental encoder — precise feedback for accurate motion and position control
- 3000 rpm maximum mechanical speed — supports fast motion applications
- Robust stall current (5.6 A), stable rotor inertia and solid mechanical design — ensures reliability under load
- Natural-convection cooling, compact size, easy installation — suitable for control panels or tight machine layouts
Specifications
| Specification | Details |
| Model / Series | BCH1302N12 (Lexium 23 Plus) |
| Rated Power | 1.0 kW |
| Flange Size | 130 mm |
| Shaft Diameter | 22 mm (keyed) |
| Encoder | 20-bit incremental |
| Maximum Speed | 3000 rpm |
| Stall Current | 5.6 A |
| Cooling | Natural convection |
| Shaft Type | Keyed, single shaft end |
| Mounting Interface | Standard flange mounting |
| Typical Applications | CNC machines, robotics, packaging lines, automation equipment |
Applications
- CNC machines and machine tools requiring accurate speed/position control
- Industrial robotics and automated pick-and-place systems
- Packaging, printing, and labeling machinery
- Conveyor drives, material handling, and assembly lines
- Automation systems needing compact, reliable servo motors with precise control
