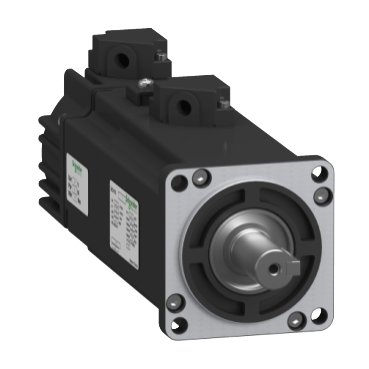

The Schneider Electric Lexium BCH16D04330F5C is a compact 400 W AC servo motor designed for precise and efficient motion control in automated machinery, CNC units, robotics, and various industrial automation systems. Featuring a 60 mm flange and 14 mm shaft, this motor combines compactness with robust performance — suitable for applications where space is limited but precision and reliability are crucial.
Its 3000 rpm nominal speed and encoder feedback provide smooth operation and accurate position/speed control. The motor is built for heavy-inertia tasks, making it ideal for high‑precision, moderate‑power applications.
Key Features
- 400 W rated power — well suited for compact / mid‑range servo applications
- 60 mm flange, 14 mm shaft — compact and easy to mount in tight spaces
- 2500‑pulse incremental encoder feedback — enables precise position and velocity control
- Heavy‑inertia design — stable performance under varying loads
- Compatible with Lexium servo drives — seamless integration for automation systems
- Suitable for CNC machines, packaging, robotics, printing, and motion‑control tasks
Technical Specifications
| Specification | Details |
| Model / Series | BCH16D04330F5C — Lexium BCH16 series |
| Rated Output Power | 400 W |
| Flange Size | 60 mm |
| Shaft Diameter | 14 mm |
| Encoder Type | 2500‑pulse incremental encoder |
| Nominal Speed | 3000 rpm |
| Maximum Speed | up to 5000 rpm (mechanical) |
| Torque (nominal) | ~1.27 N·m |
| Torque (peak / stall) | ~3.81 N·m |
| Cooling / Inertia | Heavy‑inertia design |
| Typical Uses | Automation, CNC, robotics, packaging, printing, motion control |
Applications
- Compact and medium‑size CNC machines
- Packaging, printing, labeling, and material‑handling systems
- Robotics, pick‑and‑place, and assembly automation
- Any industrial automation requiring compact servo motors with precise control
- Retrofit or build‑in systems where space is limited but precision is required
