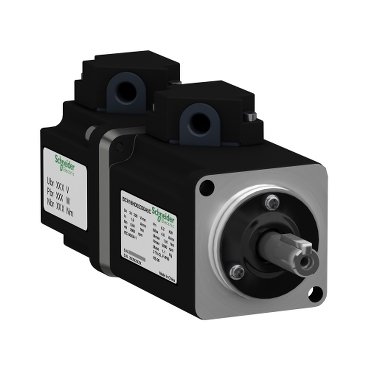

The Schneider Electric BCH16LB01330A5C AC servo motor belongs to the BCH16 family and is part of the Easy Lexium 16D series — engineered for efficient, reliable motion control in compact machines. This 100 W servo motor offers a 40 mm flange and a keyed 8 mm shaft, making it suitable for lightweight, low‑inertia applications requiring precision positioning.
With a nominal speed of 3000 rpm and a 2500 pulses‑per‑revolution incremental encoder, BCH16LB01330A5C enables accurate speed and position feedback when paired with a compatible Lexium 16D servo drive. Its light-inertia design supports fast acceleration and quick response — ideal for dynamic, repetitive motion cycles. The housing is rated IP65 for motor and shaft protection, ensuring robustness in industrial environments.
The motor’s small form factor, reliable encoder feedback, and compatibility with the Lexium 16D drive family make it a strong choice for compact motion‑control systems in automated machinery. Typical industries include packaging, textile, printing, pick‑and‑place systems, light robotics, and other applications where compact size, precision, and reliability are crucial.
Overall, BCH16LB01330A5C offers a cost-effective, compact servo motor solution for precise motion control tasks in industrial automation — balancing power, responsiveness, and ease of integration.
Key Features
- 100 W nominal output power
- 40 mm mounting flange, 8 mm keyed shaft for compact footprint
- Nominal speed: 3000 rpm, max mechanical speed: 5000 rpm
- Integrated 2500 ppr incremental encoder for precise position feedback
- Light‑inertia design (0.041 kg·cm²) for fast acceleration and responsiveness
- 3‑phase 220 V AC supply, compatible with Easy Lexium 16D drives
- IP65 protection rating (motor + shaft)
- Compact dimensions and low weight (~0.48 kg)
Technical Specifications (Table Format)
| Specification | Details |
| Model / Series | BCH16LB01330A5C (BCH16 series, Easy Lexium 16D) |
| Rated Power | 100 W (0.1 kW) |
| Voltage | 220 V AC, 3‑phase |
| Current | Continuous stall current: 1.0 A |
| Rated Speed | 3000 rpm |
| Max Speed | 5000 rpm (mechanical) |
| Torque (Rated) | 0.32 N·m |
| Torque (Peak) | 0.95 N·m (stall torque) |
| Encoder Type | 2500 ppr incremental encoder |
| Shaft Size | 8 mm diameter, keyed shaft, key width 3 mm, shaft length 12.5 mm |
| Flange Size | 40 mm |
| Protection Rating | IP65 (motor + shaft) |
| Weight | ~0.48 kg |
| Compatible Drives | Easy Lexium 16D servo drives (e.g. LXM16DU01M2X) |
Applications
- Packaging machines (labeling, sealing, strapping)
- Pick‑and‑place automation systems
- Light robotics / small robot arms
- Printing and textile machines
- Conveyor positioning systems
- General motion control in compact industrial machines
