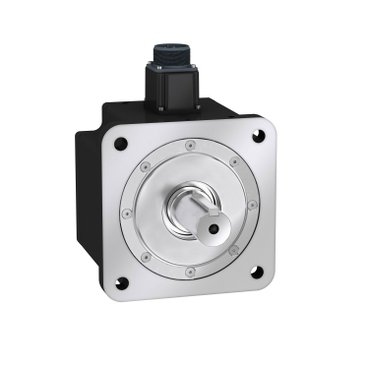

The Schneider Electric BCH2MR3523CA6C AC servo motor belongs to the BCH2 family and is designed for high‑power industrial automation applications when paired with a compatible Lexium 28 servo drive. At 3.5 kW output power, this servo motor delivers a balanced combination of torque, speed, and precision — making it ideal for medium‑to‑heavy machinery in manufacturing, processing, or production environments.
It features a substantial 180 mm flange and a 35 mm keyed shaft, ensuring secure mechanical coupling in demanding installations. With a maximum mechanical speed of 3000 rpm and nominal operating speed around 2000 rpm, BCH2MR3523CA6C accommodates both high-speed and heavy‑load requirements. Its nominal torque is 16.7 N·m, while peak (stall) torque reaches 50.3 N·m — enough for heavy load starts, acceleration, and dynamic operation.
The integrated 20‑bit single‑turn absolute encoder provides accurate position feedback for precise motion control, without needing external sensors. The motor’s design includes oil‑seal and keyed shaft configuration and supports straight electrical connection via a MIL connector, facilitating straightforward installation.
Given its robust design, power, and feedback capabilities, this servo motor is well suited for CNC machines, heavy material handling conveyors, industrial presses, packaging machinery, printing or assembly lines, and other automation systems demanding reliable torque, precision, and durability under load.
Key Features
- 3.5 kW nominal output power
- 180 mm mounting flange, 35 mm keyed shaft for secure coupling
- Nominal torque: 16.7 N·m; Peak/stall torque: 50.3 N·m
- Maximum mechanical speed: 3000 rpm (nominal speed ~2000 rpm)
- Built-in 20-bit single-turn absolute encoder for precise position feedback
- 3‑phase 220 V AC supply compatible with Lexium 28 servo drives
- Straight MIL‑connector electrical interface for simplified wiring
- Suitable for heavy‑duty industrial automation and motion‑control applications
Technical Specifications (Table Format)
| Specification | Details |
| Model / Series | BCH2MR3523CA6C (BCH2 series, Lexium 28) |
| Rated Power | 3.5 kW |
| Voltage | 220 V AC, three‑phase |
| Continuous Stall Current | 16.55 A |
| Rated Speed (nominal) | 2000 rpm |
| Max Speed | 3000 rpm (mechanical) |
| Torque (Rated) | 16.7 N·m |
| Torque (Peak / Stall) | 50.3 N·m |
| Encoder Type | 20-bit single-turn absolute encoder |
| Shaft Size | 35 mm diameter, keyed shaft |
| Flange Size | 180 mm |
| Electrical Connection | MIL connector (straight connection) |
| Cooling Method | Natural convection |
| Mounting Standard | Asian‑standard flange (180 mm) |
| Feedback / Encoder | Absolute encoder built-in |
| Product Compatibility | Lexium 28 servo drives (BCH2‑series compatible) |
Applications
- CNC machining centers and milling machines
- Material‑handling conveyors and heavy‑duty transport systems
- Industrial packaging, molding, or press machinery
- Printing, assembly, or production lines with high torque demands
- Heavy‑load automation systems requiring precise positioning and responsive control
- Large‑scale robotics or robotic arms needing strong torque and encoder feedback
