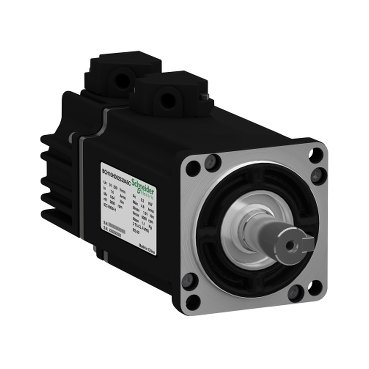

The Schneider Electric BCH16HD04330A5C is part of the “Easy” line, designed to provide a cost-effective yet robust solution for simple motion control. This motor features a Heavy Inertia design, which provides a higher resistance to external torque disturbances, making it easier to tune for machines with varying loads or mechanical play.
It is equipped with a 2500 PPR (Pulses Per Revolution) incremental encoder and a parallel keyed shaft for secure mechanical coupling. With an IP65 degree of protection for the motor body and shaft, it is well-suited for industrial environments where dust or moisture may be present. Note that this specific model is the “without brake” version, intended for horizontal axes or applications where a vertical fail-safe is not required.
Technical Specifications
| Specification | Details |
| Model / Series | BCH16HD04330A5C — Easy Lexium 16 |
| Rated Output Power | 400 W (0.4 kW) |
| Nominal Speed | 3000 RPM |
| Maximum Mechanical Speed | 5000 RPM |
| Continuous Stall Torque | 1.27 N.m |
| Peak Stall Torque | 3.81 N.m |
| Inertia Type | Heavy Inertia (0.67 kg.cm²) |
| Encoder Type | 2500 PPR Incremental Encoder |
| Shaft Type | Parallel Keyed (14 mm Diameter) |
| Holding Brake | Without Brake |
| IP Degree of Protection | IP65 |
| Frame Size | 60 mm |
| Electrical Connection | Free Lead (Flying Leads) |
Key Features & Benefits
- Heavy Inertia Rotor: Offers superior stability and reduced vibration for machines with high-inertia loads.
- Cost-Effective Precision: Part of the “Easy” series, providing reliable motion control for budget-sensitive projects.
- Industrial Grade Protection: IP65 rating ensures the motor can withstand common industrial contaminants.
- Simplified Integration: Optimized for the Easy Lexium 16D (LXM16D) drive for fast commissioning and setup.
Typical Applications
- Textile Machinery: Stable yarn feeding and tension control.
- Packaging: Pouch filling and small-scale conveyor indexing.
- Pharma Machinery: Tablet pressing and liquid filling stations.
- Small CNC/Woodworking: Stable axis movement for engraving or light routing.
