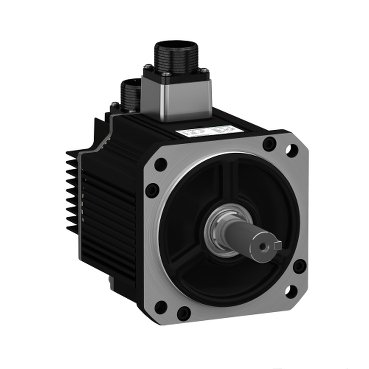

The Schneider Electric BCH16HM15230A6C Servo Motor belongs to the Lexium 16 family and is designed for heavy‑duty industrial applications. With a 130 mm flange and 22 mm shaft, this high-inertia servo motor delivers strong, stable torque and reliable performance, making it suitable for demanding motion-control tasks, CNC machines, robots, packaging lines, and other industrial automation equipment.
Optimized for integration with Lexium servo drives, the BCH16HM15230A6C combines power, precision, and durability — ideal when reliability, torque stability under load, and repeatable positioning are required.
Technical Specifications
| Specification | Details |
| Model / Series | BCH16HM15230A6C — Lexium 16 (High Inertia) |
| Output Power (Rated) | 1.5 kW |
| Flange Size | 130 mm |
| Shaft Diameter | 22 mm |
| Maximum Mechanical Speed | 3000 rpm |
| Continuous Stall Current | 7.9 A |
| Continuous Stall Torque (at rated conditions) | 7.16 N·m |
| Nominal Output Power (standard conditions) | 850 W (when used with standard drive settings) |
| Peak Stall Torque | 21.48 N·m |
| Encoder / Feedback | 2500‑pulse incremental encoder (standard on BCH16) |
| Shaft End | Keyed shaft end (parallel key) |
| Protection / Enclosure | Heavy‑inertia design; motor flange/housing rated for industrial use |
| Compatibility | Designed for Lexium 16 servo drives (Easy Lexium 16 range) |
Typical Applications
- CNC machines and machine tools require stable torque and precision
- Industrial robots, pick‑and‑place systems, and assembly automation
- Packaging, printing, textile, and material‑handling machinery
- Any automation system needing a reliable servo motor with high inertia and good feedback control
