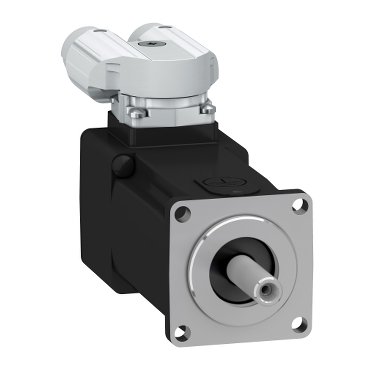

The Schneider Electric BCH2LD0433CA5C Servo Motor is designed to provide exceptional torque and speed performance for the Lexium 28 and Lexium 26D servo drive systems. This motor features a low moment of inertia, allowing for rapid acceleration and highly responsive movement, making it ideal for high-cycle industrial applications.
Equipped with a high-resolution 20-bit single-turn absolute encoder, the BCH2LD0433CA5C ensures precise positioning accuracy (0.044° error) without the need for frequent homing. Its IP65-rated housing and factory-installed oil seal provide superior protection against dust and liquid ingress, particularly when mounted to gearboxes. With a keyed shaft for slip-free mechanical power transmission, it is a reliable choice for machine builders focusing on efficiency and longevity.
Technical Specifications
| Specification | Details |
| Model / Series | BCH2LD0433CA5C — Lexium 28 |
| Rated Output Power | 400 W (0.4 kW) |
| Nominal Speed | 3000 RPM |
| Maximum Mechanical Speed | 5000 RPM |
| Supply Voltage | 220 V (Single/Three Phase) |
| Continuous Stall Torque | 1.27 N.m |
| Peak Stall Torque | 3.81 N.m |
| Frame Size | 60 mm |
| Shaft Type | Keyed (14mm Diameter x 30mm Length) |
| Feedback Type | 20-bit Single-turn Absolute Encoder |
| Safety/Protection | Integrated Oil Seal (IP65 Rating) |
| Holding Brake | Without |
| Cooling Type | Natural Convection |
| Net Weight | 1.45 kg |
Key Features & Benefits
- 20-bit Absolute Encoder: High-resolution feedback provides ultra-smooth control and eliminates the need for complex homing routines.
- Compact & Powerful: Delivers 400W from a standard 60mm flange, optimizing space in machine designs.
- Low Inertia Rotor: Optimized for dynamic, fast-start-stop applications like pick-and-place and labeling.
- Robust IP65 Protection: Full protection against dust and water jets, with an oil seal for secure gearbox integration.
- Plug-and-Play Compatibility: Seamlessly integrates with Lexium 28 (LXM28) and Lexium 26D servo drives.
Typical Applications
- Packaging & Labeling: High-speed synchronized labeling and pouch filling.
- Electronics Assembly: Precise component placement and PCB handling.
- Material Handling: Automated sorting, small conveyors, and palletizing.
- Machine Tools: Multi-axis positioning for small CNC, laser markers, and engraving machines.
- Food & Beverage: IP65-rated performance for secondary packaging and sorting lines.
