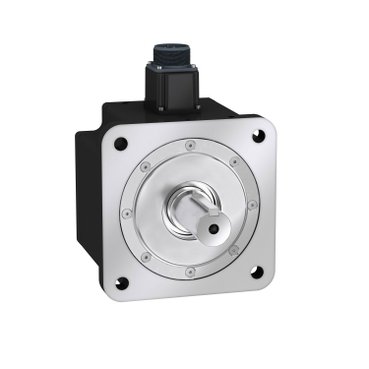

The Schneider Electric BCH2MR2030A6C Servo Motor is engineered for applications requiring high torque and precise position control. Part of the Lexium 28 range, this motor is a “Middle Inertia” model, providing excellent stability when handling larger loads or machines with high reflected inertia.
This motor comes equipped with a factory-installed holding brake, making it essential for vertical axis applications where the load must be held securely during power-off states. The 20-bit single-turn absolute encoder provides superior feedback accuracy, while the IP65-rated housing ensures durability in harsh industrial environments. With its keyed shaft, it provides a reliable mechanical interface for high-torque transmissions.
Technical Specifications
| Specification | Details (Verified Accuracy) |
| Model / Series | BCH2MR2030A6C — Lexium 28 |
| Rated Output Power | 2.0 kW (2000 W) |
| Nominal Speed | 2000 RPM |
| Maximum Mechanical Speed | 3000 RPM |
| Continuous Stall Torque | 9.55 N.m |
| Peak Stall Torque | 28.6 N.m |
| Frame Size | 130 mm |
| Shaft Type | Keyed |
| Feedback Type | 20-bit Single-turn Absolute Encoder |
| Holding Brake | With Holding Brake |
| IP Degree of Protection | IP65 |
| Electrical Connection | MIL Connector (Military Style) |
| Net Weight | 10.3 kg |
Gemini said
Slug: schneider-electric-bch2mr2030a6c-lexium-28-servo-motor-2kw
Meta Description: Buy Schneider Electric BCH2MR2030A6C Lexium 28 Servo Motor. 2kW, 2000 RPM, 130mm frame. Features 20-bit absolute encoder, keyed shaft, and holding brake. New & Surplus available.
Product Title
Schneider Electric BCH2MR2030A6C Lexium 28 Servo Motor 2 kW (130mm Frame)
$ [Price]
The Schneider Electric BCH2MR2030A6C is a high-torque AC brushless servo motor from the Lexium 28 range, delivering 2 kW (2000 W) of power. Designed for heavy-duty industrial motion control, it features a 130mm frame, an integrated holding brake, and a high-resolution 20-bit absolute encoder.
Categories: AC Servo Motors, Schneider Electric Servo Motors, Lexium 28 Series, Industrial Motion Control, 2kW Servo Motors
Description
The Schneider Electric BCH2MR2030A6C Servo Motor is engineered for applications requiring high torque and precise position control. Part of the Lexium 28 range, this motor is a “Middle Inertia” model, providing excellent stability when handling larger loads or machines with high reflected inertia.
This motor comes equipped with a factory-installed holding brake, making it essential for vertical axis applications where the load must be held securely during power-off states. The 20-bit single-turn absolute encoder provides superior feedback accuracy, while the IP65-rated housing ensures durability in harsh industrial environments. With its keyed shaft, it provides a reliable mechanical interface for high-torque transmissions.
Technical Specifications
| Specification | Details (Verified Accuracy) |
| Model / Series | BCH2MR2030A6C — Lexium 28 |
| Rated Output Power | 2.0 kW (2000 W) |
| Nominal Speed | 2000 RPM |
| Maximum Mechanical Speed | 3000 RPM |
| Continuous Stall Torque | 9.55 N.m |
| Peak Stall Torque | 28.6 N.m |
| Frame Size | 130 mm |
| Shaft Type | Keyed |
| Feedback Type | 20-bit Single-turn Absolute Encoder |
| Holding Brake | With Holding Brake |
| IP Degree of Protection | IP65 |
| Electrical Connection | MIL Connector (Military Style) |
| Net Weight | 10.3 kg |
Key Features & Benefits
- Integrated Holding Brake: Safely secures the motor shaft during power loss, ideal for Z-axis (vertical) applications.
- High Torque Performance: Delivers a continuous stall torque of 9.55 N.m, suitable for heavy industrial machinery.
- 20-bit Precision: High-resolution absolute encoder ensures smooth rotation and accurate positioning without the need for homing.
- Robust Middle Inertia: Offers a stable control loop even with fluctuating or heavy loads.
- Durable Design: IP65 protection guards against dust and moisture, extending the motor’s lifespan in factory environments.
Typical Applications
- Material Handling: Heavy-duty pick-and-place robots and automated palletizers.
- Vertical Axis Control: Z-axis movement in CNC machines or elevators requiring a holding brake.
- Packaging: Large-scale filling, bagging, and high-torque wrapping machines.
- Metalworking: Feed drives for heavy-duty cutting and forming equipment.
- Printing & Textiles: Main drive axes requiring high stability and constant torque.
