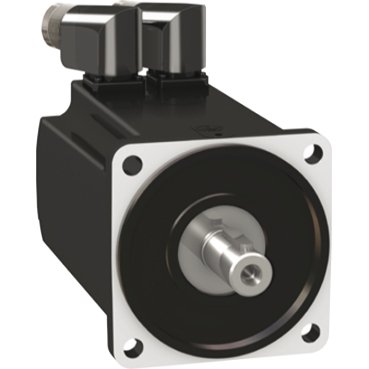

The Schneider Electric BMH1001P27A2A Servo Motor is a medium-inertia motor optimized for applications involving high-load dynamics. It features a 100mm flange size and is designed to integrate seamlessly with Lexium 32 servo drives.
Equipped with a Multiturn SinCos Hiperface encoder, this motor provides high-resolution feedback (32768 points/turn) for ultra-smooth motion control and absolute positioning across 4096 turns. Its IP65/IP67 rating ensures it can operate reliably in harsh industrial environments with dust and liquid exposure. This model features an untapped (smooth) shaft and does not include a holding brake, prioritizing high-speed performance and rapid response.
Technical Specifications
| Specification | Details |
| Model / Series | BMH1001P27A2A — Lexium 32 |
| Rated Output Power | 1.3 kW (1300 W) |
| Nominal Speed | 4000 RPM |
| Maximum Mechanical Speed | 6000 RPM |
| Continuous Stall Torque | 3.3 N.m |
| Peak Stall Torque | 10.8 N.m |
| Frame Size | 100 mm |
| Shaft Type | Untapped (Smooth) |
| Feedback Type | Multiturn SinCos Hiperface Encoder (128 periods) |
| Holding Brake | Without |
| IP Degree of Protection | IP65 (Standard) / IP67 (with kit) |
| Electrical Connection | Rotatable Right-Angled Connectors |
| Net Weight | 3.34 kg |
Key Features & Benefits
- High Power Density: Delivers 1.3 kW from a compact 100mm frame, perfect for space-constrained high-power machines.
- Precision Feedback: Integrated Hiperface encoder allows for precise absolute positioning and high-resolution speed control.
- Flexible Installation: Features rotatable right-angled connectors for easier cable routing in tight spaces.
- Industrial Durability: IP65 protection as standard, suitable for environments with moisture and contaminants.
- High Dynamics: Medium inertia rotor provides excellent acceleration and stability for complex motion profiles.
Typical Applications
- Packaging: High-speed cartoning, bagging, and flow-wrapping.
- Material Handling: Large-scale pick-and-place robotics and palletizers.
- Machine Tools: Precision axis control for CNC milling and turning centers.
- Printing & Paper: Synchronized feed rollers and cutting stations.
- Food & Beverage: Reliable performance in automated bottling and processing lines.
