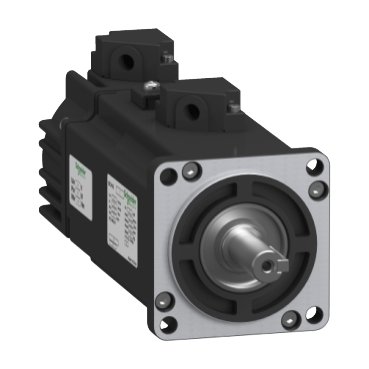

The Schneider Electric Lexium BCH16HC02330F5C2 is a compact, high-precision AC servo motor engineered for reliable motion control in modern industrial automation systems. With a 200 W rated output and heavy-inertia rotor design, this motor delivers smooth acceleration, stable torque, and accurate positioning — making it ideal for CNC machinery, robotics, and packaging equipment where space efficiency and precision are critical.
Its 3000 rpm nominal speed, incremental encoder feedback, and integrated holding brake ensure accurate speed control, safe stopping, and consistent performance in demanding automation environments.
Key Features
- 200 W rated power — ideal for compact and light-to-medium duty servo applications
- 60 mm flange with 11 mm shaft — compact form factor for tight installation spaces
- 2500-pulse incremental encoder — precise position and velocity feedback
- 3000 rpm nominal speed — optimized balance of speed and torque
- Heavy-inertia rotor design — stable performance under variable load conditions
- Integrated holding brake — enhanced safety and vertical-axis support
- Compatible with Lexium 16 servo drives — seamless system integration
Technical Specifications
| Specification | Details |
| Model / Series | BCH16HC02330F5C2 — Lexium BCH16 series |
| Rated Output Power | 200 W |
| Flange Size | 60 mm |
| Shaft Diameter | 11 mm |
| Encoder Type | 2500-pulse incremental encoder |
| Nominal Speed | 3000 rpm |
| Maximum Speed | Up to 5000 rpm (mechanical) |
| Nominal Torque | Approx. 0.64 N·m |
| Peak / Stall Torque | Approx. 1.91 N·m |
| Rated Voltage | 220 V AC |
| Maximum Current | Approx. 4.8 A |
| Brake | Integrated holding brake |
| Rotor / Inertia | Heavy-inertia design |
| Mounting Standard | Asian standard flange |
| Drive Compatibility | Lexium 16 servo drives |
| Typical Uses | CNC, robotics, packaging, printing, automation |
Applications
- Compact and mid-size CNC machines
- Packaging, labeling, and material-handling systems
- Robotics and pick-and-place automation
- Printing and assembly equipment
- Servo-driven axes requiring compact size with high positional accuracy
