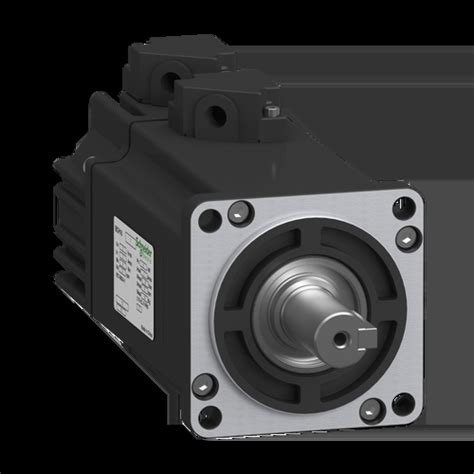

The Schneider Electric Lexium BCH16LJ1032F6C2 is a high-performance AC servo motor engineered for demanding motion control applications in industrial automation. With a 1 kW rated power, 100 mm flange, and 22 mm shaft, this low-inertia servo motor offers dynamic responsiveness and precise control for CNC machines, robotics, packaging systems, and other automated equipment.
Equipped with a 23-bit high-resolution encoder and integrated holding brake, this motor delivers superior feedback precision and reliable holding capability — making it ideal for applications that require both speed and position accuracy in compact industrial environments.
Key Features
- 1 kW rated output power — robust servo performance for medium-power applications
- 100 mm flange and 22 mm shaft — stable mechanical interface for higher torque delivery
- Low-inertia rotor design — enhanced dynamic response and acceleration
- 23-bit high-resolution encoder feedback — precise position and velocity measurement
- Nominal speed of 3000 rpm — balanced for a wide range of motion tasks
- Integrated holding brake — added safety and static positioning support
- Designed for seamless integration with Lexium 16D servo drives
Technical Specifications
| Specification | Details |
| Model / Series | BCH16LJ1032F6C2 — Lexium BCH16 series |
| Rated Output Power | 1 kW |
| Flange Size | 100 mm |
| Shaft Diameter | 22 mm |
| Encoder Type | 23-bit high-resolution encoder |
| Nominal Speed | 3000 rpm |
| Maximum Speed (Mechanical) | Up to ~5000 rpm |
| Rotor Design | Low inertia |
| Holding Brake | Integrated brake |
| Drive Compatibility | Lexium 16D servo drives |
| Typical Uses | Automation, CNC, robotics, packaging |
Applications
- Compact and medium-sized CNC machines
- Packaging, labeling, and material handling equipment
- Robotic motion axes and pick-and-place automation
- Printing and assembly machines
- Any motion control system requiring high positional precision and dynamic response
