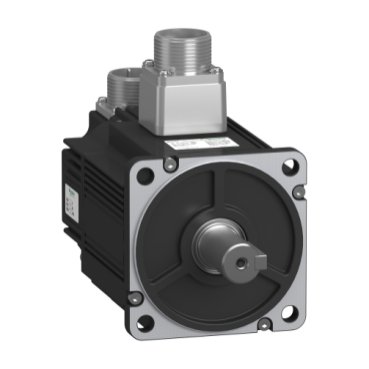

The Schneider Electric Lexium BCH16LJ10330F6C2 is a powerful and compact servo motor designed for precision motion control in industrial automation systems. Offering 1 kW rated power, a 100 mm flange diameter, and a 22 mm shaft, this low-inertia servo motor delivers responsive performance for demanding applications like CNC machines, robotic axes, packaging lines, and more.
This model also includes an integrated holding brake and is engineered for seamless integration with Lexium 16D servo drives, enabling smoother commissioning and dependable motion control with superior responsiveness.
Key Features
- 1 kW rated output power — substantial power for medium duty industrial applications
- 100 mm flange with 22 mm shaft — larger footprint for higher torque output
- Low-inertia rotor design — quick acceleration and dynamic response
- 3000 rpm nominal speed — balancing speed and torque for versatile uses
- Integrated holding brake — improved safety and axis holding capability
- Lexium 16D compatible — reliable and straightforward integration with Schneider servo drives
Technical Specifications
| Specification | Details |
| Model / Series | BCH16LJ10330F6C2 — Lexium BCH16 series |
| Rated Output Power | 1 kW |
| Flange Size | 100 mm |
| Shaft Diameter | 22 mm |
| Rotor Design | Low inertia |
| Nominal Speed | 3000 rpm |
| Maximum Speed (Mechanical) | Up to 5000 rpm |
| Holding Brake | Integrated brake |
| Drive Compatibility | Lexium 16D servo drives |
| Typical Uses | Automation, CNC, robotics, packaging |
Applications
- Medium-sized CNC machines
- Packaging and material handling equipment
- Robotics and pick-and-place systems
- Machine axes requiring swift dynamic response
- Motion control tasks demanding reliable torque and speed
