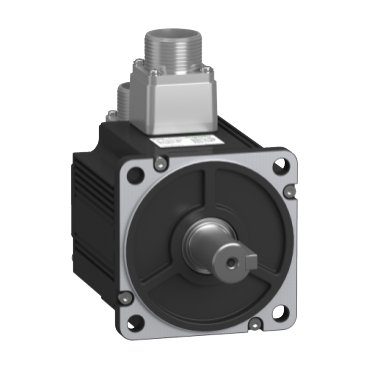

The Schneider Electric Lexium BCH16LJ10332A6L2 is a robust and compact AC servo motor designed for industrial automation and precision motion control applications. Featuring a 1 kW rated output, 100 mm flange, and 22 mm shaft, this motor delivers a strong, responsive drive performance suitable for CNC machines, robotics, packaging, and other automated systems.
Equipped with a 23-bit high-resolution encoder, the motor ensures exceptionally accurate position and speed feedback for demanding motion tasks. Its low-inertia design enhances dynamic response, making it well-suited for applications requiring rapid acceleration and precise positioning.
Key Features
- 1 kW rated power — ideal for medium-power industrial drive applications
- 100 mm flange; 22 mm shaft — stable mechanical interface for higher torque duties
- 23-bit high-resolution encoder — high precision position and speed feedback
- Low-inertia rotor design — quick dynamic response and acceleration
- Nominal speed 3000 rpm — balanced performance for versatile motion tasks
- Designed for Lexium 16D servo drives — seamless integration in automation systems
Technical Specifications
| Specification | Details |
| Model / Series | BCH16LJ10332A6L2 — Lexium BCH16 series |
| Rated Output Power | 1 kW |
| Flange Size | 100 mm |
| Shaft Diameter | 22 mm |
| Encoder Type | 23-bit high-resolution encoder |
| Nominal Speed | 3000 rpm |
| Maximum Speed (Mechanical) | Up to ~5000 rpm |
| Rotor Design | Low inertia |
| Drive Compatibility | Lexium 16D servo drives |
| Typical Uses | Automation, CNC, robotics, packaging |
Applications
- Compact and medium-sized CNC machines
- Packaging, labeling, and material handling equipment
- Robotic motion axes and pick-and-place systems
- Automated assembly and production lines
- Other motion control tasks requiring high precision and dynamic performance
