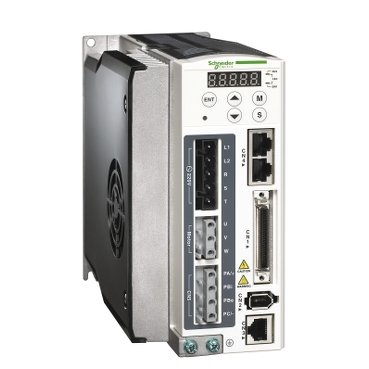

The Schneider Electric LXM23AU10M3X Servo Drive is a robust and flexible solution for high-precision motion control. Supporting both single-phase and three-phase 220V inputs, this 1 kW drive is designed to pair perfectly with Lexium BCH servo motors. It is part of the “A” (Advanced) version of the Lexium 23 series, which provides integrated fieldbus connectivity via CANopen.
Engineered for efficiency and ease of use, the LXM23AU10M3X features auto-tuning, resonance suppression, and a compact “book-size” design that saves valuable space in control cabinets. Whether used for simple point-to-point positioning or complex synchronized multi-axis movements, this drive ensures high-speed response and reliable performance in demanding environments.
Technical Specifications
| Specification | Details |
| Model / Series | LXM23AU10M3X — Lexium 23 Plus |
| Rated Output Power | 1000 W (1 kW) |
| Supply Voltage | 220 V (-10…15% Single Phase / -20…15% Three Phase) |
| Continuous Output Current | 7.3 A |
| Communication Interface | CANopen and CANmotion (Integrated) |
| Auxiliary Interface | RS485 (Modbus) for configuration |
| Discrete Inputs | 8 Programmable inputs |
| Discrete Outputs | 5 Programmable logic outputs |
| Analog Inputs | 2 (Voltage ±10 V for Speed/Torque control) |
| Cooling Type | Integrated Fan |
| Degree of Protection | IP20 (IP41 with protective cover) |
| Net Weight | 2.2 kg |
Key Features & Benefits
- Integrated CANopen/CANmotion: Enables seamless integration into complex motion architectures and real-time control systems.
- 1 kW Power Output: High-capacity performance suitable for medium-load industrial applications.
- Flexible Power Supply: Operates on both single and three-phase 200…255 V networks.
- Advanced Tuning Tools: Features auto-tuning and vibration suppression to reduce commissioning time and improve machine stability.
- Compact “Book” Format: Slim profile (85mm width) allows for high-density mounting in electrical panels.
- Built-in Safety & Diagnostics: Integrated protections against overvoltage, overcurrent, and overheating with a 7-segment display for fault monitoring.
Typical Applications
- Packaging & Labeling: High-speed filling, wrapping, and labeling machines.
- Material Working: Precise control for milling, gluing, and grinding equipment.
- Textiles: Winding, unwinding, and spinning machinery.
- Material Handling: Conveyors, palletizers, and pick-and-place robotics.
- Machine Tools: Multi-axis cutting and specialized assembly machines.
