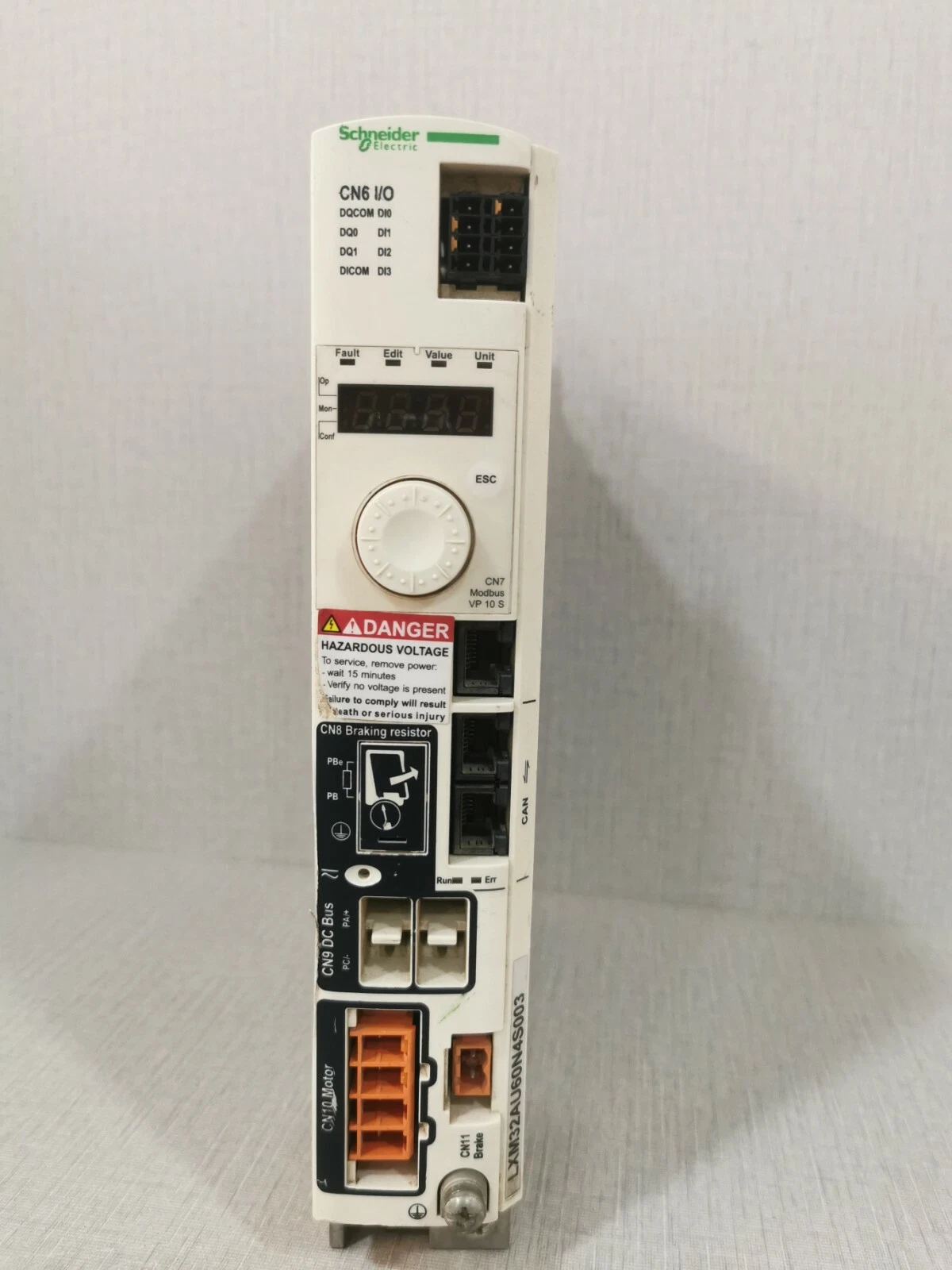

The LXM32AU60N4S003 is part of the Lexium 32A series, engineered for high-performance motion control applications. It provides a continuous output current of 1.5 A (at 8 kHz) and a 3-second peak current of 6 A, ensuring high dynamic response for rapid acceleration tasks.
This specific “S003” variant is optimized for machine safety and communication flexibility, featuring an integrated Safe Torque Off (STO) function (SIL 3 / PL e) to prevent unintended motor operation. The drive is exceptionally compact (only 48mm wide), allowing for high-density cabinet mounting. It is fully compatible with BMH and BSH servo motor families, offering a “plug-and-play” experience through its automatic motor identification and electronic nameplate recognition.
Technical Specifications
| Specification | Details (Official Data) |
| Model / Series | LXM32AU60N4S003 — Lexium 32A |
| Rated Supply Voltage | 208…480 V (Three Phase) |
| Continuous Power | 0.4 kW at 400 V |
| Continuous Output Current | 1.5 A at 8 kHz |
| Peak Output Current | 6 A for 5 seconds |
| Communication Interface | Integrated CANopen, CANmotion, and Modbus |
| Safety Function | STO (Safe Torque Off) SIL 3 / PL e |
| Discrete Inputs/Outputs | 1 Capture, 2 Safety, 4 Logic Inputs / 2 Logic Outputs |
| IP Degree of Protection | IP20 |
| Cooling Type | Natural Convection |
| Dimensions (W x H x D) | 48 mm x 270 mm x 237 mm |
| Net Weight | 1.7 kg |
Key Features & Benefits
- Dynamic Response: 1,600 Hz bandwidth for ultra-fast motor control and reduced mechanical vibration.
- Network Ready: Dual RJ45 ports for CANopen/CANmotion simplify daisy-chaining multiple drives.
- Safety Integrated: Built-in STO reduces wiring complexity and hardware costs while ensuring compliance with global safety standards.
- Cabinet Optimization: Narrow 48mm width allows for dense mounting, significantly reducing control panel size.
- Automatic Tuning: Auto-tuning functions minimize commissioning time and optimize performance for specific loads.
Typical Applications
- Pick-and-Place Robots: High-speed material handling and sorting.
- Packaging Machinery: Synchronized feeding, labeling, and wrapping.
- Electronics Assembly: Precise component placement and soldering axes.
- Textile Equipment: High-tension winding and accurate thread guidance.
