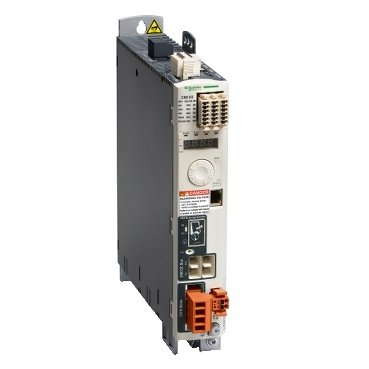

The Schneider Electric LXM32CU60N4 Servo Drive from the Lexium 32 range is a 0.4 kW drive built for reliable, high-precision motion control. With a three-phase 208…480 V supply and a compact form factor, it offers excellent responsiveness and flexibility for a wide range of industrial applications.
This drive is designed to integrate seamlessly with BMH and BSH servo motors, offering smooth, accurate control for CNC machines, packaging systems, robotics, conveyors, and other automation equipment. Its engineered build quality ensures stable performance even under continuous use, making it a dependable choice for demanding industrial environments.
Technical Specifications
| Specification | Details |
| Model / Series | LXM32CU60N4 — Lexium 32 / LXM32 |
| Rated Output Power | 400 W (0.4 kW) |
| Supply Voltage | 208…480 V AC |
| Phase | Three-phase |
| Continuous Output Current | 1.5 A at 8 kHz |
| Maximum Peak Current | 6 A for 5 seconds |
| Nominal Speed | Dependent on motor pairing |
| Control Interface | Pulse Train (Step/Dir) and Analog Input |
| Communication Port | Modbus (Integrated) |
| Feedback (Encoder) | Supported SinCos Hiperface / Resolver |
| Cooling / Housing | Natural convection / Book-size compact |
| Compatibility | Lexium BMH and BSH servo motors |
Key Features & Benefits
- 400 W power rating — ideal balance between high performance and energy efficiency.
- Wide Voltage Range — supports 208V to 480V for versatile global installations.
- Pulse/Direction & Analog Control — flexible interface for legacy and modern PLC systems.
- Compact Book-size form factor — easy integration into tight electrical control cabinets.
- Integrated Safety — includes “Safe Torque Off” (STO) to prevent unintended motor starts.
- Broad compatibility — plug-and-play ready with Schneider BMH/BSH series motors.
Typical Applications
- CNC machines and machine tools needing precision motion and high speed.
- Robotic arms, pick-and-place systems, and automation platforms.
- Packaging, printing, labeling, and material-handling equipment.
- Conveyor systems, assembly lines, and industrial automation tasks.
- Any application requiring compact, reliable, and accurate servo drive performance.
