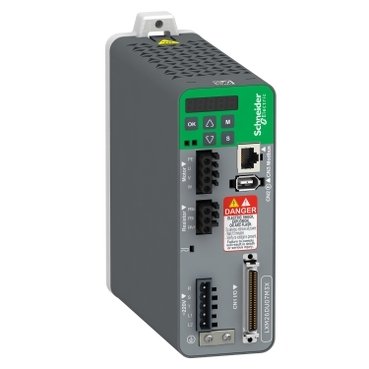

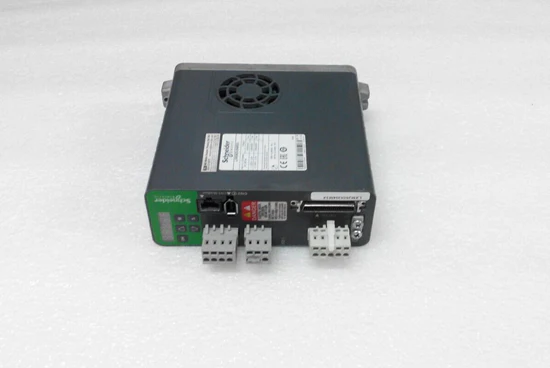

Ensure precise, efficient motion control in compact automation setups with the Schneider Lexium LXM26DU04M3X Servo Drive, part of the Lexium 26 series. Built for reliability and ease of installation, this drive is suited for CNC machines, robotics, packaging lines, printing, textile machines, and other industrial automation applications requiring smooth, accurate motor control.
Key Features
- 0.4 kW (400 W) Output Power — suitable for small to mid-range servo motors. Imimg+2electrihub.com+2
- Single‑ or Three‑Phase Supply (200–230 V AC) — flexible for varied power setups. electgo.com+1
- Compact Housing — space‑efficient design ideal for panel mounting or compact machinery frames. electgo.com+1
- Continuous Output Current: ~2.6 A (at 16 kHz) — stable performance for continuous use. Imimg+1
- 3‑Second Peak Current: ~7.8 A (at 220 V) — handles transient demands during motor startup or load changes. Imimg+1
- Natural Convection Cooling — quieter and less maintenance compared to fan‑cooled drives. eezee.com.my+1
- IEC / EN Compliance & Certifications (CE, CSA, cULus) — ensures safety and compatibility with international industrial standards. eezee.com.my+1
- Easy Wiring & Setup — front‑access spring terminals for power and control wiring; simple installation and maintenance. electgo.com+1
Technical Specifications
| Specification | Details |

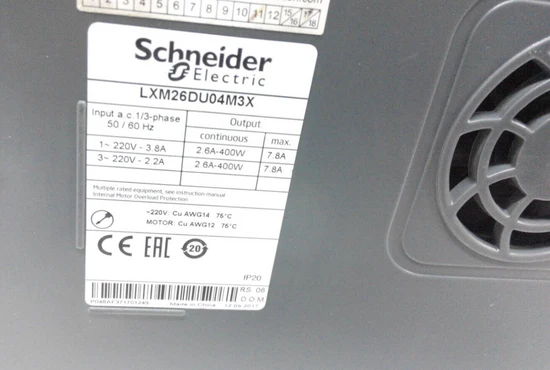

| Model / Series | LXM26DU04M3X — Lexium 26 servo drive |
| Continuous Output Power | 0.4 kW / 400 W |
| Supply Voltage | 200–230 V AC, single‑ or three‑phase |
| Supply Voltage Range | Single-phase: 170–255 V; Three-phase: 200–255 V Imimg+1 |
| Frequency | 50/60 Hz Imimg+1 |
| Continuous Output Current | ~2.6 A at 16 kHz switching frequency Imimg+1 |
| Peak Output Current (3s) | ~7.8 A at 220 V Imimg+1 |
| Housing / Cooling | Compact housing, natural convection cooling electgo.com+1 |
| Dimensions (W x H x D) | 55 mm × 150 mm × 146 mm eezee.com.my+1 |
| Net Weight | ~1 kg eezee.com.my+1 |
| Protection Rating | IP20, conforming to IEC / EN 61800‑5‑1 electrihub.com+1 |
| Connectivity / Control | Standard spring terminals, simple control interface (7‑segment HMI + buttons) mall.elemro.com+1 |
| Cooling Method | Natural convection (no fan) eezee.com.my+1 |
Typical Applications
- Small/medium CNC machines and machine tools needing precise motor control
- Automation in packaging, printing, textile, plastics and rubber processing
- Robotic arms, pick‑and‑place systems, and material handling setups
- Conveyor systems and motion‑controlled assembly lines
- Any industrial automation requiring compact, efficient servo drives with reliable performance
Upgrade your setup with the Schneider Lexium LXM26DU04M3X Servo Drive — a compact, reliable, and cost‑effective solution for precision motion control in industrial automation.
