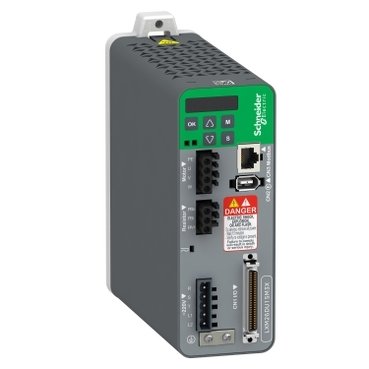

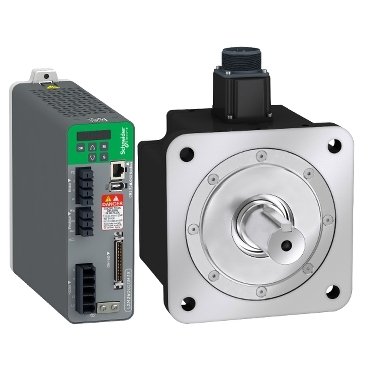

Experience dependable, high-precision motion control with the Schneider Electric Lexium LXM26DU15M3X Servo Drive, part of the Lexium 26 range. Engineered for industrial automation, CNC, robotics, and motion-critical applications, this drive is compact, robust, and ideal for setups requiring consistency, speed, and reliability.
Key Features
- 1.5 kW Output Power — ideal for mid-range servo motors
- Single- or Three-Phase 200–230 V Input — usable with various power supply configurations
- Compact Housing — space-efficient for panel or machine mounting
- Flexible Current Handling — continuous output current ~7 A; 3-second peak current up to 21 A
- Wide Supply Range — single-phase: 170–255 V; three-phase: 200–255 V; frequency 50/60 Hz
- Industrial-Grade Protections — overcurrent, overvoltage, undervoltage, overload, overheating, overspeed protection, reverse polarity, and isolation between power & control circuits
- Standard Connectivity & I/O — digital inputs, outputs, analog inputs for flexible control signal handling, encoder feedback support for servo motors
Technical Specifications
| Specification | Details |
| Model / Series | LXM26DU15M3X — Lexium 26 series |
| Output Power | 1.5 kW |
| Supply Voltage | 200–230 V AC, single or three phase |
| Supply Voltage Range | Single-phase: 170–255 V; Three-phase: 200–255 V |
| Frequency | 50/60 Hz |
| Continuous Output Current | ~7 A at 16 kHz switching frequency |
| 3‑Second Peak Output Current | Up to ~21 A at 220 V |
| Cooling / Housing | Compact housing, integrated cooling (fan), vertical mounting |
| Protection / Safety | Overcurrent, overvoltage, undervoltage, overload, overheating, overspeed, reverse polarity, electrical isolation, short-circuit protection |
| Dimensions (approx.) | Height ~150 mm, Width ~55 mm, Depth ~177 mm |
| Ambient Conditions | Operating: 0–55 °C; Storage: –25–65 °C; Relative humidity 5–95% non-condensing |
| Protection Rating | IP20 |
Applications
- CNC machines and machine tools requiring accurate speed and position control
- Industrial robotics — pick-and-place, assembly lines, automated arms
- Production and packaging machines
- Conveyor and motion control systems in manufacturing plants
- Any industrial automation setup where compact, reliable servo drives are needed
Upgrade your automation performance with the Schneider Lexium LXM26DU15M3X Servo Drive — a robust, energy-efficient, and precision-engineered solution for modern motion control.
