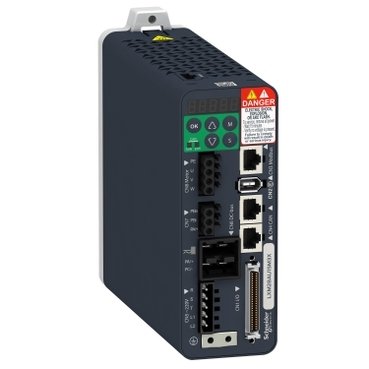

Experience reliable, flexible motion control with the Schneider Electric Lexium LXM28AU10M3X Servo Drive, part of the Lexium 28 series. Designed for compact to medium-duty automation machinery, CNC machines, robotics, and production lines, this 1 kW servo drive delivers strong performance, easy installation, and robust control functions.
Key Features
- 1 kW Output Power — suitable for small-to-mid-range servo motors and general automation tasks.
- 200–230 V AC Supply (Single- or Three-Phase) — flexible for various power setups.
- Compact Housing — Width 55 mm, Height 150 mm, Depth 170 mm — space-efficient for panel or machine mounting.
- Continuous Output Current: 7 A at 16 kHz — stable continuous drive performance.
- 3-Second Peak Output Current: 21 A at 220 V — supports motor startup and transient loads.
- Integrated CANopen / CANmotion Interfaces + RJ45 communication port — easy integration into automated control networks.
- Spring-Terminal Wiring for Power & Control — simple wiring and installation.
- IP20 Enclosure, Fan Cooling, Standards Compliance (CE, CSA, cULus, EN/IEC 61800-5-1) — industrial-grade safety and reliability.
Technical Specifications
| Specification | Details |
| Model / Series | LXM28AU10M3X — Lexium 28 |
| Output Power | 1 kW (1000 W) at 220 V, 16 kHz |
| Supply Voltage | 200–230 V AC, single- or three-phase |
| Supply Voltage Limits | Single-phase: 170–255 V; Three-phase: 200–255 V |
| Supply Frequency | 50 / 60 Hz |
| Continuous Output Current | 7 A @ 16 kHz switching frequency |
| Peak Output Current (3s) | 21 A at 220 V |
| Cooling / Housing | Compact housing, integrated fan, spring-terminal wiring |
| Protection / Safety Rating | IP20 enclosure, EN/IEC 61800-5-1, CE / CSA / cULus certified |
| Dimensions (W × D × H) | 55 mm × 170 mm × 150 mm |
| Net Weight | ~1.2 kg |
| Communication Interfaces | CANopen, CANmotion, RJ45, Modbus (RS-485) |
Applications
- CNC machines and small-to-medium machine tools requiring precise speed and position control
- Industrial robotics, pick-and-place systems, automation modules
- Packaging, labeling, and assembly machinery
- Conveyor and material handling systems
- General automation setups requiring compact, reliable servo drives
