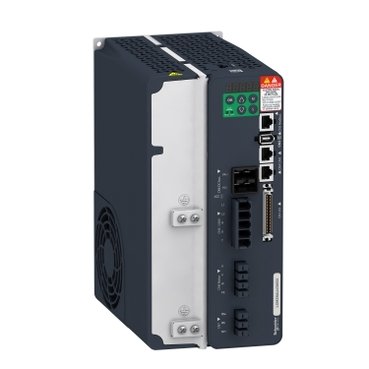

Experience powerful, reliable motion control with the Schneider Electric Lexium LXM28AU30M3X Servo Drive, part of the Lexium 28 series — engineered for demanding automation, CNC, robotic, and industrial motion applications. Delivering 3 kW of continuous power and robust output capabilities, this servo drive ensures accurate, smooth, and efficient performance in heavy-duty systems.
Key Features
- 3 kW (3000 W) Output Power — suitable for medium to heavy loads and high-performance servo motors
- 200–230 V AC Three‑Phase Supply — standard industrial voltage compatibility
- Continuous Output Current 19.8 A @ 8 kHz — stable power output for continuous operation
- Peak Output Capability: 60 A (3‑second peak) at 220 V for startup or transient loads
- Integrated Communication Interfaces: CANopen and CANmotion for versatile control system integration
- Spring-Terminal Power & Control Wiring + RJ45 Connectors — simplifies installation and wiring
- Compact / Rugged Housing (Lexium 28 Series) with IP20 protection — suitable for industrial control cabinets
- Compliant with Safety & Industry Standards (CE, CSA / cULus, EN/IEC 61800-5-1)
Technical Specifications
| Specification | Details |
| Model / Series | LXM28AU30M3X — Lexium 28 servo drive |
| Continuous Output Power | 3 kW / 3000 W |
| Supply Voltage | 200–230 V AC, three-phase |
| Supply Frequency | 50 / 60 Hz |
| Continuous Output Current | 19.8 A @ 8 kHz switching frequency |
| Peak Output Current (3s) | 60 A at 220 V |
| Cooling / Housing | Compact housing, integrated fan cooling, spring‑terminal wiring |
| Protection / Safety Rating | IP20 enclosure, isolation between power/control, meets EN/IEC 61800‑5-1, CE/CSA/cULus certified |
| Communication Interfaces | CANopen, CANmotion, RS‑485 Modbus (optional) |
| Dimensions (W × D × H) | 116 mm × 186 mm × 234 mm |
| Net Weight | ~3.2 kg |
| Compatible with Servo Motors | Lexium BCH2 servo motors (up to 3 kW class) — full Lexium 28 servo bundle support |
Applications
- CNC machines and machine tools requiring high torque, speed and position control
- Industrial robots, pick‑and‑place systems, automated assembly lines
- Packaging, printing, and material handling machinery
- Conveyor systems and other continuous‑duty motion subsystems
- Any industrial automation requiring robust 3 kW servo drive power and precise motor control
