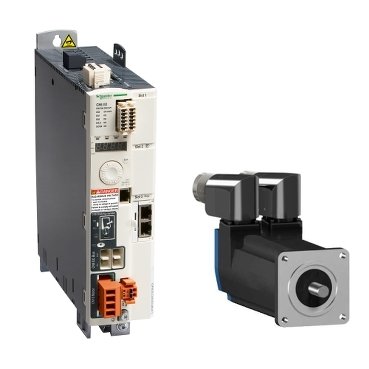

The Schneider Electric Lexium LXM32SU90M2 Servo Drive is a compact, efficient motion controller from the Lexium 32 series, designed for precise and reliable motion in small-to-medium automation systems. Operating on single-phase 115/230 V supply, it is ideal for packaging machines, compact CNC units, pick-and-place robotics, and material-handling setups. The book-format housing, integrated EMC filter, and flexible control modes make it easy to install, wire, and integrate into modern automation environments.
Key Features
- Single-phase 115/230 V AC supply — suitable for small to medium automation panels.
- 0.3–0.5 kW output power — ideal for compact servo motors and light-duty applications.
- Continuous output current: 3 A @ 8 kHz — stable and efficient operation.
- Peak current up to 9 A (3 seconds) — supports startup and sudden load demands.
- Integrated EMC filter — reduces electrical noise and simplifies compliance.
- Book-format compact housing — saves space in control cabinets.
- Flexible control modes — position, speed, and torque control.
- Standard I/O and communication interfaces — seamless integration with automation systems.
- Safe and reliable design — IP20 enclosure, industrial-grade protection.
Technical Specifications
| Specification | Details |
| Model / Series | LXM32SU90M2 — Lexium 32 |
| Output Power | 0.3 kW (115 V) / 0.5 kW (230 V) |
| Supply Voltage | 115 V or 230 V AC (single-phase) |
| Voltage Range | 85…132 V / 170…264 V |
| Supply Frequency | 50 / 60 Hz |
| Continuous Output Current | 3 A @ 8 kHz |
| Peak Output Current (3 s) | Up to 9 A |
| Control Modes | Position, Speed, Torque |
| Integrated Filter | Yes — EMC filter |
| Enclosure Rating | IP20 |
| Housing Type | Book-format, compact |
| Cooling | Forced-air / natural (depending on load) |
| Mounting | Panel mount |
| Typical Applications | CNC, robotics, packaging, conveyors, automation |
Applications
- Small-to-medium CNC machines
- Packaging and labeling systems
- Light-duty robotic arms and pick-and-place units
- Printing and processing machinery
- Conveyor systems and material-handling automation
- General industrial automation requiring compact, reliable servo drives
