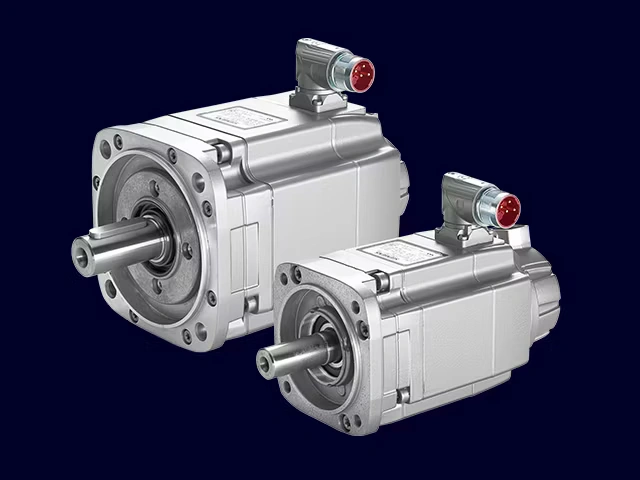

The Siemens 1FT6064-6WF71-4SA0 is a 6-pole, permanent-magnet synchronous motor designed for high-dynamic performance in demanding environments. Unlike standard naturally cooled motors, this model utilizes water cooling, allowing it to maintain high torque output (16.2 N.m) in a compact frame size without overheating.
This specific configuration features a multi-pole resolver (P=3) for robust position feedback and a smooth shaft (without feather key) to ensure maximum rotational accuracy and balance at high speeds. With an IP64 protection rating (labyrinth seal), it is built to withstand industrial contaminants. As a spare part item, it is the primary choice for maintaining and repairing high-end CNC machinery and automated production lines.
Technical Specifications
| Specification | Details (Official Data) |
| Series | SIMOTICS S-1FT6 |
| Motor Type | Permanent-magnet synchronous motor |
| Static Torque ($M_0$) | 16.2 N.m |
| Rated Speed ($n_n$) | 3000 RPM |
| Max Speed ($n_{max}$) | 9100 RPM |
| Rated Current ($I_n$) | 10.3 A |
| Cooling Method | Water-Cooled |
| Shaft Design | Smooth Shaft (Circular runout tolerance N) |
| Encoder / Feedback | Multi-pole Resolver (P=3) |
| Degree of Protection | IP64 (Labyrinth Seal) |
| Mounting Type | IM B5 (IM V1, IM V3) |
| Holding Brake | Without Brake |
| Net Weight | ~12.5 kg |
Key Features & Benefits
- Water-Cooled Efficiency: Advanced thermal management allows for continuous high-torque operation in confined spaces.
- High-Speed Capability: Capable of reaching mechanical speeds up to 9100 RPM.
- Precision Resolver Feedback: Provides reliable, vibration-resistant positioning for high-dynamic closed-loop control.
- Compact Power: Part of the “6-pole compact” design, offering one of the highest torque-to-size ratios in the Siemens portfolio.
- Rugged IP64 Protection: Protected against dust and splashing water, ideal for machine tool environments.
Typical Applications
- High-End Machine Tools: Main and auxiliary axes in milling and turning centers.
- Plastic Processing: Injection molding and extrusion machinery.
- Heavy-Duty Packaging: High-speed, high-torque synchronized movements.
- Industrial Printing: High-performance feed and roller controls.
