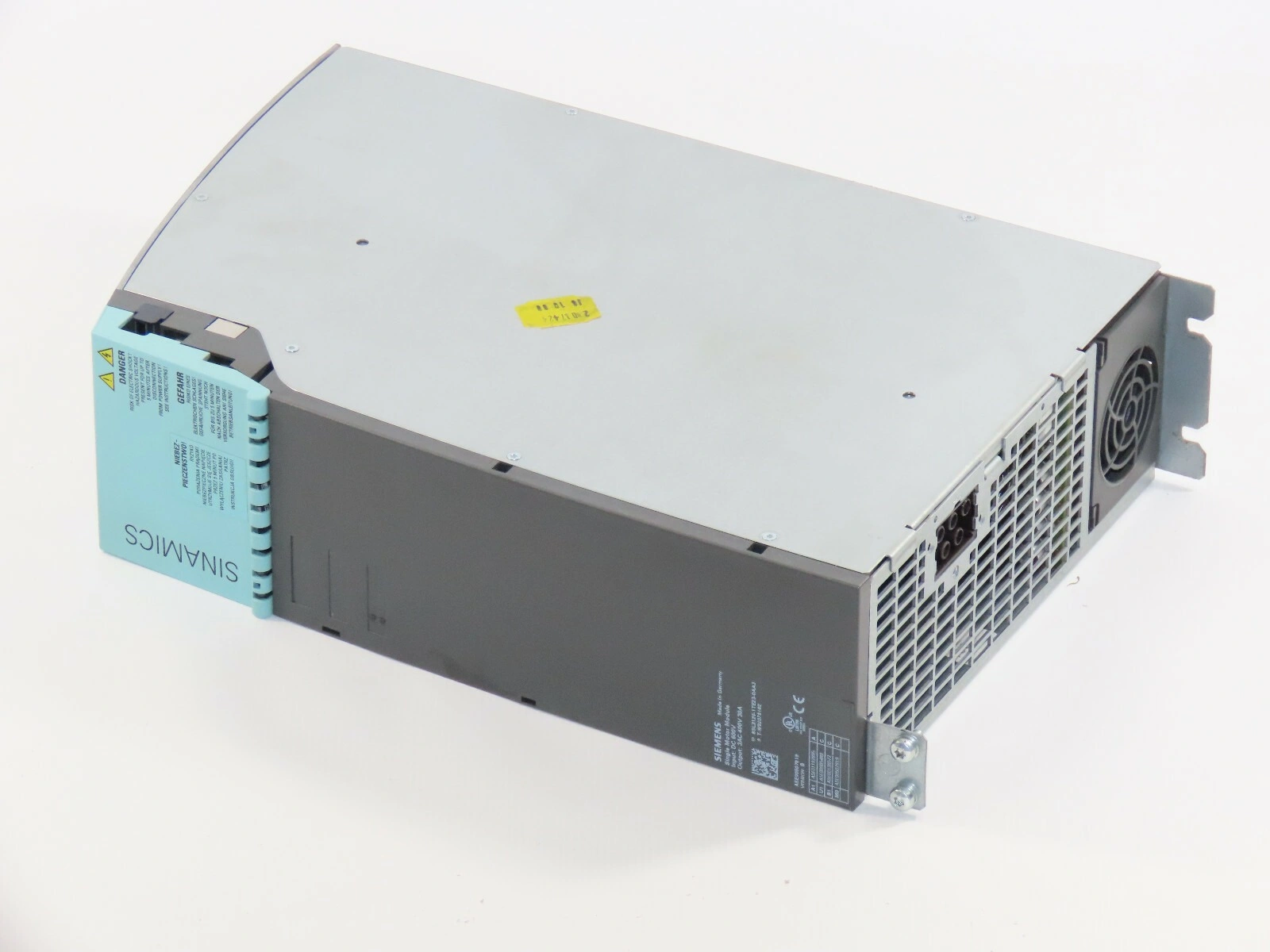

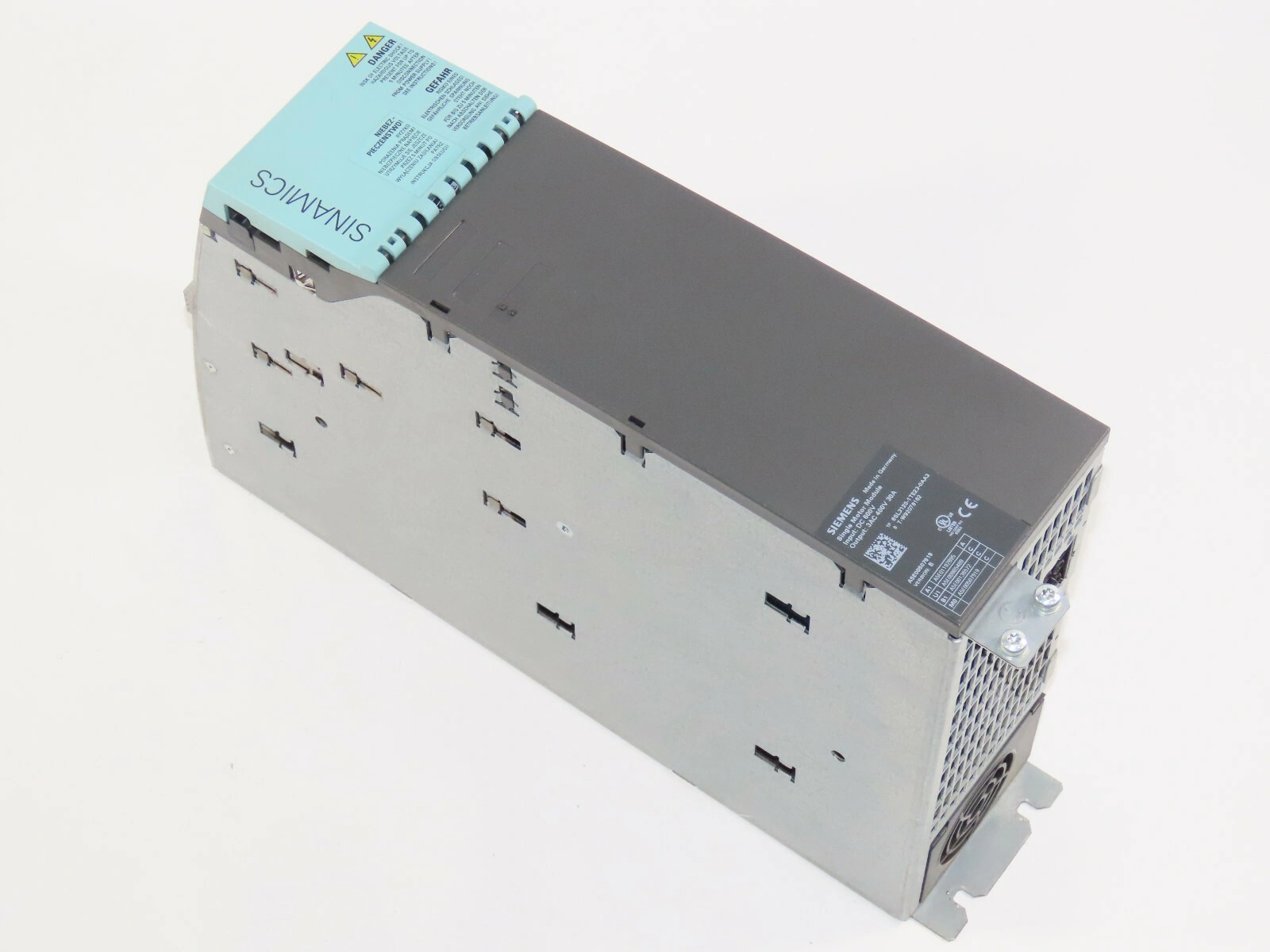

The Siemens SINAMICS 6SL3120‑1TE23‑0AA3 is a high‑performance single‑motor drive module from the SINAMICS S120 series, designed to deliver reliable, precise motor control in industrial automation systems. Engineered in a compact “booksize” format, this drive module packs powerful capabilities into a space‑efficient form factor — making it suitable for control cabinets with limited space or multi-axis drive racks.

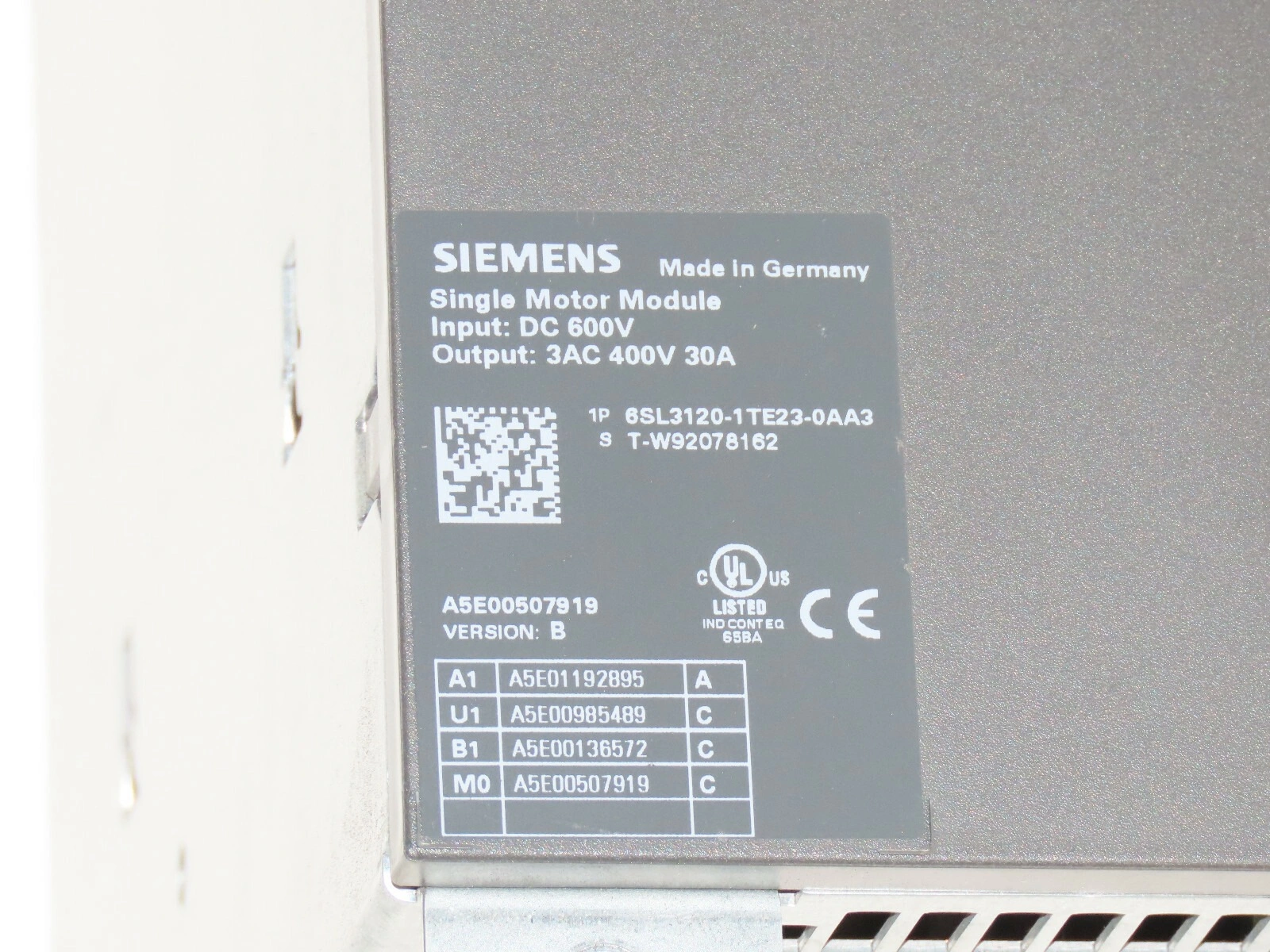

Operating with a DC‑link input voltage between 510 and 720 V DC (typically 600 V DC) and producing a 3‑phase 400 V AC output, this module delivers a rated output current of 30 A — providing up to 16 kW of motor power under rated conditions. This power rating makes it capable of driving medium‑ to high‑power servo or asynchronous motors in demanding industrial applications.
The integrated internal air cooling enables efficient heat dissipation while maintaining compact dimensions. The module supports optimized PWM/pulse patterns and includes the DRIVE‑CLiQ communication interface for seamless integration within larger automation ecosystems. With support for extended safety functions and modular architecture, 6SL3120‑1TE23‑0AA3 fits well in advanced motion control systems, CNC machines, robotics, conveyors, packaging, and processing equipment.
Despite its power, the booksize form and manageable weight make it easy to install, configure, and maintain — whether in single‑drive setups or multi‑axis installations. It is ideal wherever a balance of compactness, power, and flexibility is required.
Key Features
- Single‑motor drive module from SINAMICS S120 family
- Rated output current: 30 A — suitable for motors up to ~16 kW
- Input: 510–720 V DC; Output: 3‑phase 400 V AC
- Booksize compact construction for space‑efficient installation
- Internal air‑cooling for reliable thermal management
- Integrated DRIVE‑CLiQ interface for communication & motor feedback integration
- Supports optimized pulse patterns & advanced control modes
- Supports extended Safety Integrated functions
- Suitable for servo, asynchronous, or synchronous motors
- Nominal power output: ~16 kW under rated load
Technical Specifications (Table Format)
| Specification | Details |
| Model / Series | 6SL3120‑1TE23‑0AA3 (SINAMICS S120, Single Motor Module) |
| Input DC‑link Voltage | 510 … 720 V DC (typical 600 V DC) |
| Output Voltage | 3‑phase 400 V AC |
| Rated Output Current | 30 A |
| Maximum Output Current | 56 A (intermittent / peak) |
| Rated Power Output | 16 kW |
| Continuous Output Power | ~13.7 kW under continuous load |
| Cooling Method | Internal air‑cooling (booksize module) |
| Communication Interface | DRIVE‑CLiQ integrated |
| Dimensions (approx.) | ~380 × 100 × 270 mm (booksize form) |
| Weight (approx.) | ~4.99 kg |
| Protection Rating | IP20 (open‑type / panel mounting) |
| DC-Link Capacitance | 705 µF |
| Safety Standards | Safety Integrated, supports extended safety options |
Applications
- CNC machinery and machining centers
- Industrial robotics and automation cells
- Conveyor and material‑handling systems
- Packaging, printing, textile, or processing machines
- Servo‑motor or asynchronous‑motor drive installations
- Multi-axis drive cabinets requiring space-saving modular drives
